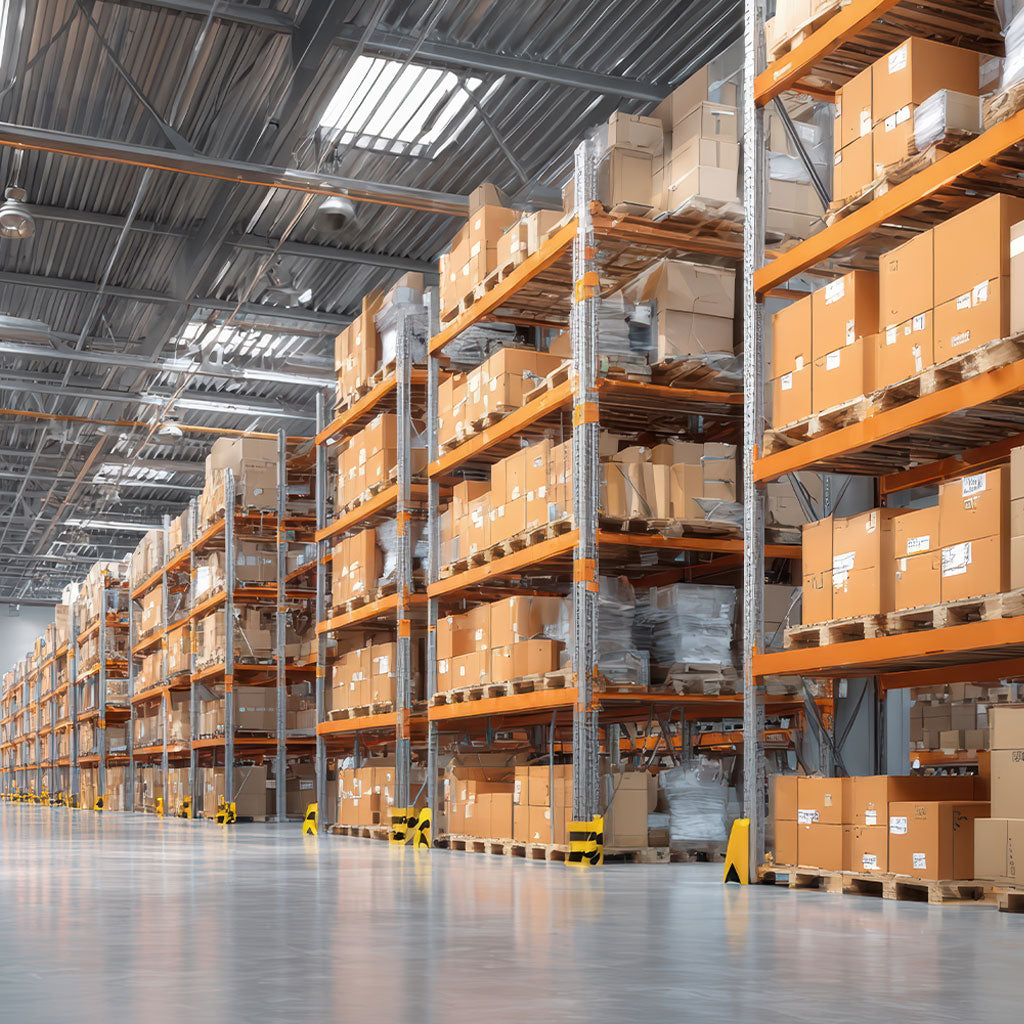

IronStor's Guide To Warehouse Racking Terminology

Walking into a large-scale warehouse for the first time can feel a bit like stepping onto a film set. It is a world of towering structures, humming forklifts, and a language all of its own. If you are tasked with upgrading your storage or setting up a new facility, the technical jargon can quickly become overwhelming. Words like "uprights," "bays," and "UDL" get thrown around, and if you aren't sure what they mean, you might end up with a system that doesn’t actually fit your needs.

At IronStor, we believe that understanding your equipment is the first step toward a safer, more efficient workplace. We aren’t just middle-men or stockists of imported kits; we are UK manufacturers based in the heart of Stoke-on-Trent. We live and breathe steel, and we’ve put together this guide to help you navigate the essential terminology of the racking world.

Why the Right Terminology Matters

Before we dive into the "what," let’s talk about the "why." Using the correct terms ensures that when you speak to a supplier or an installer, everyone is on the same page. It prevents costly mistakes: like ordering the wrong height or underestimating the load capacity.
Furthermore, because we manufacture our own solutions here in the UK, knowing these terms helps us work with you to create bespoke solutions. Unlike many "one-size-fits-all" imported systems, our Stoke-on-Trent team can tweak dimensions and specifications to fit your specific building.

The Core Components: The "Skeleton" of Your Rack

Every racking system is built from a few fundamental parts. Think of these as the building blocks of your storage.

1. Uprights (or Frames)

The upright is the vertical member that provides the height and structural integrity of the rack. Usually, two uprights are connected by diagonal and horizontal bracing to form a frame.

In a high-quality system, these are made from heavy-duty steel and feature punched holes at regular intervals. These holes allow you to adjust the height of your shelves. Because we manufacture our own frames, we ensure they meet rigorous ISO certifications for safety and quality.

2. Beams

Beams are the horizontal bars that connect the frames. These are what your pallets or goods actually sit on. They "clip" into the uprights using high-strength connectors.
It is vital to understand that the length and thickness of a beam dictate how much weight it can hold. If you’re looking for a comparison of materials, you might find our article on why British-made steel still dominates helpful in understanding the durability of the components we use.

3. Bays: Starter vs. Add-on

This is where many beginners get tripped up.

• Starter Bay: This is a complete, free-standing unit consisting of two frames and at least two levels of beams.
• Add-on Bay: Since an add-on bay shares a frame with the starter bay, it only consists of one frame and the necessary beams.

By using add-on bays, you can create long runs of racking more cost-effectively than buying individual starter units.

Levels and Space Utilisation

When we talk about levels, we are referring to the horizontal "shelves" within a bay.
It is a common mistake to count the floor as a level. In industry terms, if you have a rack with two sets of beams, you have a "two-level" system, even if you are also storing pallets on the floor beneath the first beam.

Choosing the number of levels depends entirely on your ceiling height and the height of your stock. If you’re working in a confined area, you might want to check out our tips on installing metal shelving in small spaces.

Strength and Safety Terms

Safety isn't just a buzz word; it’s the foundation of everything we do. Our manufacturing process is backed by ISO 9001 (Quality Management) and ISO 45001 (Occupational Health and Safety), ensuring that every component we produce in Stoke-on-Trent is fit for purpose.

1. UDL (Uniformly Distributed Load)

This is perhaps the most important acronym you will encounter. UDL refers to the maximum weight a pair of beams can hold, assuming the weight is spread evenly across the surface. If you put all the weight in the middle of a beam, it could bend or fail, even if the total weight is below the UDL limit.

2. Shims and Base Plates

Concrete floors are rarely perfectly flat. Shims are small metal plates placed under the base plates (the feet of the uprights) to ensure the entire rack is level and stable.

3. Row Spacers

If you have two rows of racking back-to-back, row spacers are used to connect them. This adds an incredible amount of stability to the system and ensures that the aisles stay perfectly aligned.

Specialised Racking Types

Not all warehouses store standard pallets. Depending on your industry, you might need something a little more tailored.

• Cantilever Racking: Instead of having a frame at the front, these have long arms reaching out from a central spine. They are perfect for long items like timber, pipes, or metal extrusions.
• Galvanised Racking: If you are storing items in a damp or cold environment (like a walk-in fridge or an outdoor covered area), you need galvanised steel. This has a protective zinc coating to prevent rust. You can read more about why to choose galvanised steel shelves here.
• Mezzanines: While not strictly "racking," a mezzanine is a raised platform that creates a whole new floor level in your warehouse. It’s the ultimate way to double your floor space without moving premises.

The IronStor Advantage: Made in the UK

When you search for "warehouse racking," you will see a lot of cheap, imported options. These are often "one-size-fits-all" kits that are difficult to replace if a part gets damaged, and they rarely come with the structural guarantees that a UK business needs.

At IronStor, we take a different approach. Because we are the manufacturers, we can offer:
Bespoke Design: If your warehouse has a strange corner or a low hanging pipe, we can manufacture a solution that works around it.

• Sustainability: By manufacturing in Stoke-on-Trent, we significantly reduce the carbon footprint associated with shipping heavy steel halfway around the world.
• Accountability: We have 40 years of experience, and we aren't going anywhere. We pride ourselves on the quality of our welds and the thickness of our steel.

We’ve worked on everything from archive shelving for Wiltshire Council to specialised golf bag storage for St Andrews. Every project starts with the same basic terminology but ends with a unique solution tailored to the client.

Key Accessories to Consider

To get the most out of your racking, you might need a few extras:

• Wire Decking: This sits on top of the beams to create a "shelf." It’s great for safety as it prevents items from falling through and allows for better fire sprinkler penetration.
• Column Protectors: Forklifts are heavy, and accidents happen. A column protector is a steel shield bolted to the floor in front of an upright to take the impact of a knock, saving your rack from structural damage.
• Aisle Signage: Essential for improving stock visibility in busy environments.

Final Thoughts for the Beginner

Don't feel like you have to be an expert on day one. The most important thing is to know what you are storing, how much it weighs, and the dimensions of your space.
