Cantilever Racking 101

If you have ever tried to store a six-metre length of timber or a heavy bundle of steel pipes on standard pallet racking, you will know the frustration. The front uprights always seem to be in the way, making it nearly impossible to load and unload safely. That is exactly where cantilever racking comes into its own.

As a specialist manufacturer based in Stoke on Trent since 1984, we have seen first-hand how the right Storage Racking can transform a cluttered workshop or a chaotic timber yard into a streamlined, efficient operation. In this guide, we will take you through everything you need to know about cantilever racking systems: from why they are the gold standard for long loads to how you can size them up for your own space.

What Exactly is Cantilever Racking?

Unlike standard Industrial Shelving or pallet racks that use a "box" frame with four uprights, a cantilever system uses a central vertical column with horizontal arms extending outwards. Think of it like a series of "L" or "T" shaped structures.

Because there are no vertical posts at the front of the rack, you have an unobstructed horizontal space. This makes it the only practical choice for items that are too long or too awkward for traditional shelving. At IronStor, we design and manufacture these systems to handle everything from lightweight plastic conduit to multi-tonne steel beams.

Why it’s the Perfect Match for Long Loads

If your business deals with any of the following, cantilever racking isn't just an option; it’s usually a necessity:

• Timber and Lumber: Long planks, plywood sheets, and skirting boards.
• Piping and Tubing: PVC, copper, or heavy-duty industrial steel pipes.
• Metal Sections: Extrusions, angles, and steel bars.
• Furniture and Carpet Rolls: Large, bulky items that shouldn't be bent or squashed.

The beauty of this system is that it supports the load along its entire length, preventing the "sagging" that can happen when you try to bridge gaps on standard Warehouse Racking.

Choosing Your Configuration: Single vs Double Sided

When you are planning your layout, one of the first decisions you will make is whether to go for single-sided or double-sided units.

• Single-Sided (Wall-Mounted Style)

  Single-sided racks have arms on only one side of the upright. These are perfect for lining the perimeter of your building. They sit flush against the wall, making the most of your floor space without protruding too far into your aisles. While they are often referred to as "wall-mounted," it’s important to remember that they are actually floor-anchored for structural integrity.

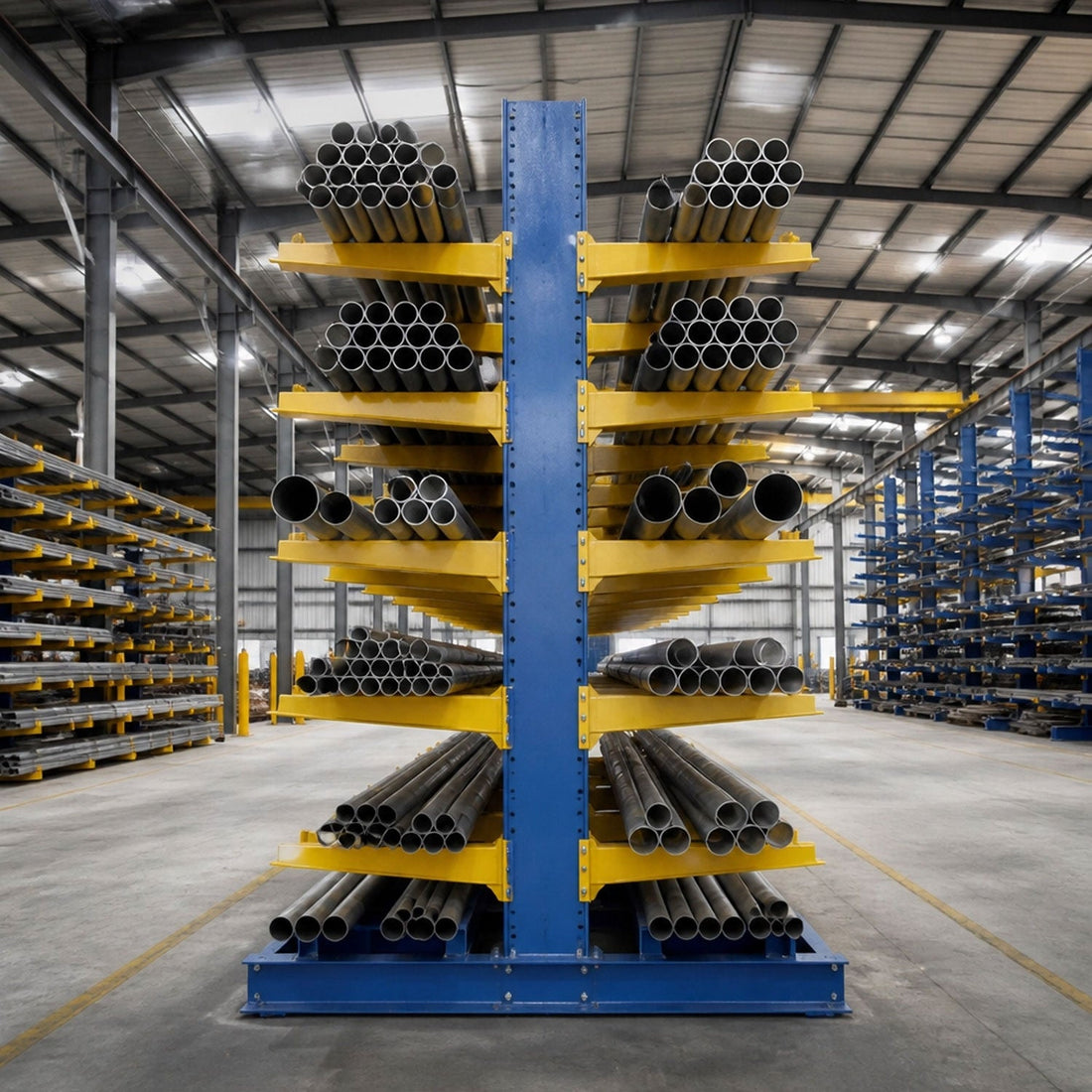

• Double-Sided (Freestanding)

  If you have a larger floor area, double-sided cantilever racks are a game-changer. They feature a central upright with arms extending in both directions. This effectively doubles your storage capacity using a single set of columns. These are usually placed in the centre of a warehouse to create aisles that can be accessed from both sides, significantly boosting your picking efficiency.

Understanding Load Capacities

One of the most common questions we get at IronStor is: "How much can it actually hold?" Because we are manufacturers and not just resellers, we build our Heavy Duty Racking to meet rigorous standards, including ISO9001 and ISO14001 certification.

Load capacities are generally broken down into two parts:

• Arm Capacity: This is how much a single arm can hold. Depending on the design, this can range from 250kg for lighter materials to over 3 tonnes for heavy industrial steel.
• Upright Capacity: This is the total weight the entire vertical column can support. High-end systems can handle upwards of 20 to 30 tonnes per upright.

Top Tip: Always place your heaviest loads on the base level. In most cantilever systems, the base acts as the first storage level, and because it sits directly on the floor, it doesn't count towards the upright’s total weight limit. This is a great way to maximise your storage without overstressing the structure.

How to Size Your System (A Simple 5-Step Guide)

Getting the measurements right is crucial for safety and efficiency. Here is how you can start planning:

• Measure Your Load: Note down the length, depth, and weight of your longest/heaviest bundles.
• Determine Arm Length: Your arms should always be at least as long as the depth of the load. If you are storing 1200mm deep packs of timber, you need 1200mm arms.
• Check for Deflection: Long materials like timber or thin pipe can bend if not supported correctly. You might need three or four arms per level instead of just two to keep the load straight.
• Calculate the Height: Consider the height of your warehouse and the reach of your forklift. Don't forget to leave a "buffer" space above the top load for the forklift tines to move.
• Plan the Spacing: The distance between uprights should be roughly half the length of your shortest load to ensure everything stays stable.

If this feels a bit technical, don't worry. You can customise your storage with us, and our team will help you run the numbers to ensure your system is perfectly balanced.

Why British Manufacturing Matters

In an era of "value-engineered" imports, we take a different approach. Every piece of Metal Garage Racking or Industrial Shelving we sell is made to order in our Stoke on Trent facility. We have been doing this since 1984, combining decades of experience with modern manufacturing standards.

When you buy a British-made system from IronStor, you aren't just getting steel; you’re getting a product designed for the specific demands of the UK market. Whether it's a small set of racks for a home workshop or a massive installation for an NHS trust or a national timber merchant, we focus on the highest quality workmanship.

Safety and Installation

Cantilever racking is incredibly strong, but it must be installed correctly. Because these systems hold exceptionally long and heavy loads, they must be securely anchored to a level concrete floor.

Regular safety inspections are also a must. Look out for any signs of "arm deflection" or damage from forklift impact. If you ever notice a bent arm or a loose floor bolt, it’s time to take action immediately to keep your team safe.

Final Thoughts

If you are struggling with "the long-load problem," cantilever racking is almost certainly the answer. It’s flexible, incredibly strong, and clears up valuable floor space that would otherwise be lost to messy piles of timber or pipe.

Are you looking to upgrade your warehouse or garage? Whether you need Heavy Duty Shelving for a commercial project or a robust solution for your home, we are here to help. At IronStor, we don't just sell racks: we manufacture solutions that last a lifetime.

If you want advice or to learn more about how we can help you design the perfect layout, then talk to our team. Call: 01782 770100, Email: info@ironstor.co.uk or fill in the form here and one of our team will be in touch.
