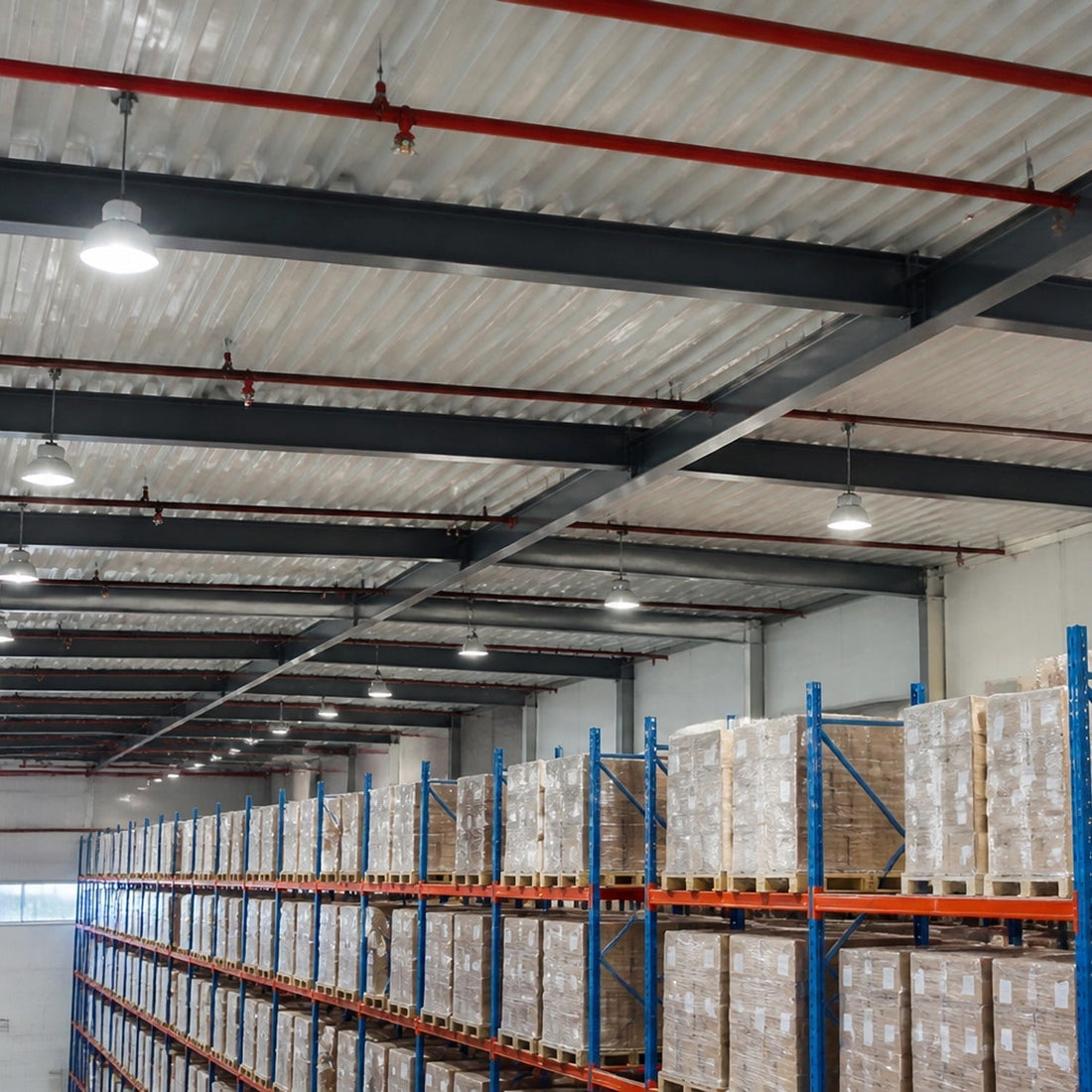

Storage and Sprinkler Systems Must Work Together

If you’re running a busy warehouse or managing a large-scale commercial stockroom, you’ve probably felt the pressure to "go vertical." When floor space is at a premium, building your storage upwards feels like the only logical way to grow. But before you stack that final pallet or order those extra-tall shelving units, there’s a silent partner in your facility that needs a seat at the table: your fire sprinkler system.

It’s easy to overlook those red pipes and small brass heads tucked away at the ceiling level, but they are the most critical safety feature in your building. At IronStor, we’ve spent decades manufacturing high-quality storage solutions in our Stoke-on-Trent facility, and we’ve seen first-hand how often "density" and "compliance" can clash.

If you don’t leave enough breathing room between your stock and your sprinklers, you aren't just breaking a minor rule: you’re potentially invalidating your insurance and, more importantly, putting your team at risk. Let's look at why clearance matters and how you can stay compliant without losing your storage efficiency.

The "Golden Rule" of Clearance

In the UK, warehouse fire safety is largely dictated by two main sets of standards: BS EN 12845 (the core design and installation standard) and the LPC (Loss Prevention Council) Rules. These aren’t just suggestions; they are the benchmarks that fire authorities and insurance companies use to decide if your building is safe.

The most common rule of thumb you’ll hear is the 500mm rule. This is the minimum vertical distance required between the top of your stored goods and the deflector of the sprinkler head.

Why 500mm? It’s not a random number chosen to make your life difficult. It’s all about the "spray pattern." When a sprinkler head activates, it doesn't just drop water straight down like a tap. It’s designed to hit a deflector plate that shatters the water into a specific cone-shaped spray. This spray needs space to develop. If your stock is too high, the water hits the boxes and bounces off or pools on top, never reaching the heart of the fire or the adjacent racks.

Why Your Sprinkler System Is Fussy (And Rightly So)

Think of your sprinkler system as a finely tuned engine. It was designed based on the height of your ceiling, the type of items you store, and the height of your racking. If you change any of those variables: especially the height: you change the "hazard classification" of your building.

Spray Obstruction: As mentioned, water needs to fan out. If your shelving is too tall, you create "dry spots" where a fire can rage untouched by the overhead system.
Heat Trapping: Fire moves upwards. If stock is too close to the ceiling, heat from a small fire can become trapped and travel horizontally, setting off more sprinkler heads than necessary and causing massive water damage to stock that wasn't even near the fire.

The "Chimney Effect": In narrow-aisle racking, fire can travel vertically very fast. Sprinklers are designed to "overpower" this plume of heat. If the gap is too small, the water can't effectively penetrate the rising heat to cool the fuel below.

Bespoke Manufacturing: The IronStor Solution

This is where the benefit of customised storage really comes into play. Because we manufacture everything ourselves right here in the UK, we don’t force you to use "off-the-shelf" heights that might be 10cm too tall for your compliance needs.

When we work with a client, we don't just ask how much they want to store. We ask about their facility. If you have a mezzanine level or a lower ceiling section with sprinklers, we can manufacture our heavy-duty shelving to the exact millimetre required to maintain that 500mm (or 1000mm, depending on your hazard level) clearance.

Being manufacturers since 1984, we’ve learned that a "one size fits all" approach usually fits nobody. Our Stoke-on-Trent team can design bespoke units that maximise every available inch of safe vertical space while ensuring your insurance surveyor has a smile on their face during their next visit.

Material Choices: Mesh vs. Solid Shelving

It’s not just about how high you stack; it’s about what you’re stacking on. This is a nuance that often catches people out.

If you are using solid timber or steel shelves, the sprinkler water hits the top shelf and stops. It cannot "tunnel" down through the levels of the racking. In many high-hazard environments, insurers will insist on open-mesh shelving.

Open-mesh or wire decking allows at least 50% (and often more) of the water to pass through to the lower levels. This is a game-changer for fire safety. At IronStor, we can provide a range of shelving accessories and deck types to suit these requirements. If your risk assessment calls for "transverse flue spaces" (vertical gaps between pallets to let water through), we design our racking layouts to maintain those gaps automatically.

Compliance Checklist for Your Warehouse

If you're worried your current setup might be pushing the limits, here’s a quick audit you can perform today:

• Measure the Gap: Get a laser measure and check the distance from the top of your highest item to the sprinkler heads. Is it at least 500mm?
• Check for Obstructions: Are there any light fixtures, heaters, or ducting that are even lower than the sprinklers? These can also interfere with the spray pattern.
• Review Your Hazard Category: Have you recently started storing more plastics or aerosols? These are "High Hazard" items and often require even larger clearances or even "in-rack" sprinklers.
• Look at Your Shelves: Are they solid? If a fire started on the bottom shelf, could the overhead sprinklers reach it?
• Check Your Records: Do you have the original sprinkler design documents? They will state exactly what storage height the system was built for.

Safety is an Investment, Not a Cost

It’s tempting to squeeze in one more shelf level. We get it. But the cost of a non-compliance fine, or worse, an insurance claim being rejected after a fire, far outweighs the benefit of a few extra boxes.

When you choose a partner who understands the relationship between storage and safety, you’re buying peace of mind. We pride ourselves on our ISO9001 and ISO14001 certifications, which reflect our commitment to quality and standard-driven manufacturing. We aren't just selling you steel; we’re selling you a system that fits your building’s DNA.

How to Get Started

If you’re planning a warehouse upgrade or a new fit-out, don't leave the sprinkler clearance until the last minute. It should be one of the first things you measure.

At IronStor, we’re happy to chat through your requirements. Whether you need a full warehouse racking system or just a few units for a retail stockroom, our team can help you navigate the tricky world of storage compliance. Call us: 01782 770100, email us: info@ironstor.co.uk or fill in the form here and one of our experts will be back in touch.
