How to Assemble Boltless Shelving: A Step-by-Step Guide

Boltless shelving is designed to go together by hand, without a toolkit or a full afternoon set aside. Most assembly problems come down to sequence rather than difficulty: getting the frame square before the shelves go on, rather than trying to correct it afterwards.

Before You Start: Check the Floor and Clear the Space

Boltless bays need a flat, level surface to sit correctly, since an uneven floor can throw the whole frame out of square even if every part is assembled correctly. Clear enough floor space to lay out the uprights and beams before you start, rather than assembling in a cramped corner where a frame can't be checked for square as you go.

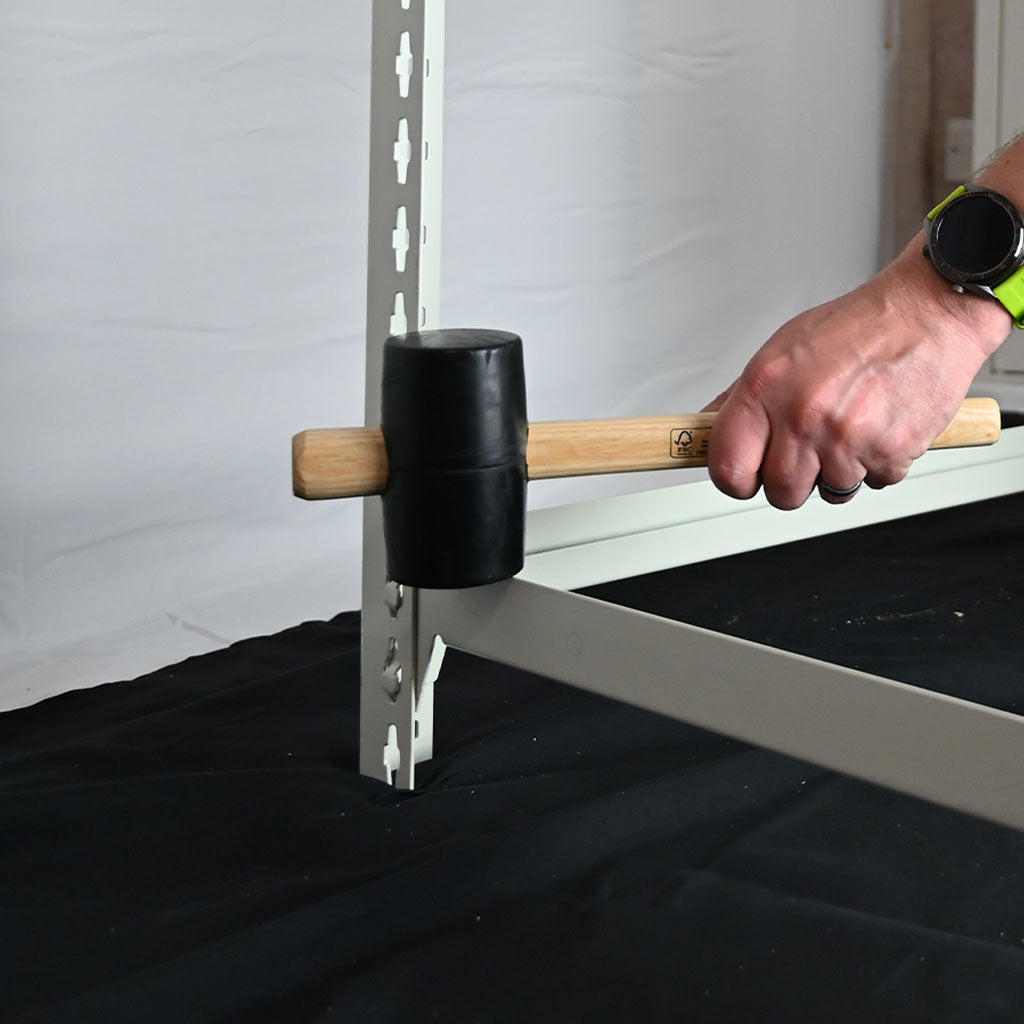

Step 1: Build the End Frames First

Boltless systems typically start with two end frames, each made from a pair of upright posts connected by cross braces that lock into slotted holes along the upright. Get the bracing fully seated at this stage, a brace that looks connected but isn't fully engaged is the most common cause of a wobbly finished bay.

Step 2: Connect the Frames With Beams

Once both end frames are standing, boltless beams connect them front to back using a rivet-and-slot or interlocking tab design that locks in place by hand, no bolts or fixings required. Beams typically need to seat with an audible or visible click, don't assume a beam is secure just because it's resting in position.

Step 3: Check the Bay Is Square Before Adding Shelves

This is the step most commonly skipped. Before any shelves go in, check the whole bay is square by measuring corner to corner across both diagonals, they should match. A bay that's slightly out of square at this stage only gets harder to correct once shelves are loaded on top.

Step 4: Fit the Shelves at the Right Spacing

Shelves generally rest directly on the beams and lock into position without additional fixings. Set spacing based on what's actually going to be stored, our guide to adjustable vs fixed shelving covers how to think about spacing before you commit to a layout.

Step 5: Secure the Bay to the Floor or Wall Where Required

Taller bays, or bays in higher-traffic areas, generally need floor fixing brackets to prevent tipping, an accessory worth fitting at assembly rather than adding as an afterthought. IronStor's shelf accessories range includes floor fixing brackets and joining plates for exactly this purpose.

Why Businesses Choose Boltless in the First Place

If you're still weighing up boltless against a bolted system, our piece on why businesses are switching to boltless shelving covers the strength and flexibility trade-offs in more depth than this assembly guide does.

Final Thoughts

Boltless shelving genuinely goes up quickly, provided the sequence is right: square end frames first, beams fully seated, a square check before shelves go on, and floor fixing where the bay needs it.

If you'd like advice on specifying or assembling a boltless system for your site, our team is happy to help. Call us: 01782 770100, Email: info@ironstor.co.uk or fill in the form here and one of our team will be in touch.
