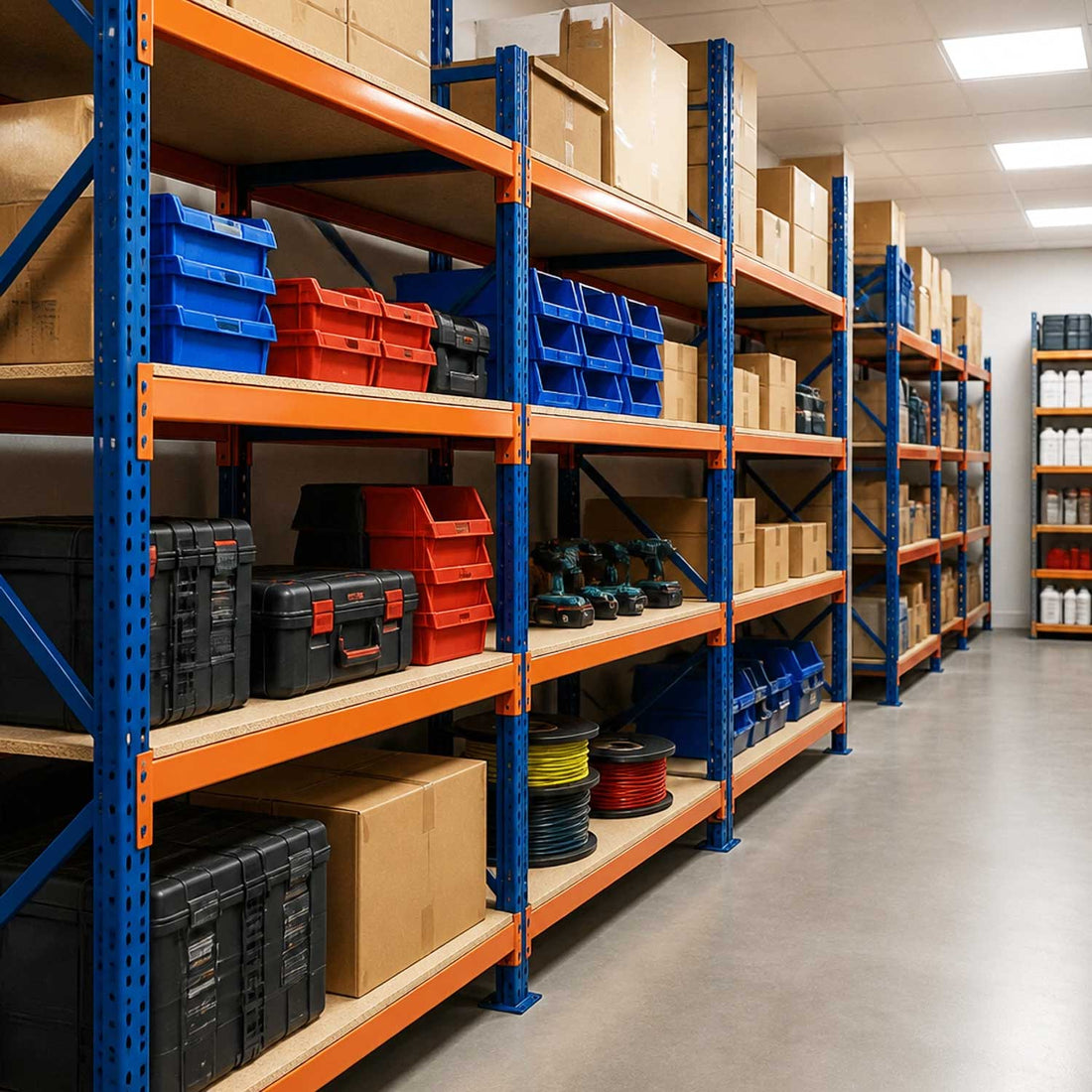

Load Ratings, Sizes & Configurations Explained...

When you are trying to tame a cluttered stockroom, a busy workshop, or an overflowing garage, standard domestic shelving simply will not cut it. If you stack heavy tools, dense inventory, or bulky automotive parts onto flimsy wire racks, you are asking for trouble. That is where robust Heavy Duty Shelving steps in.

Choosing the right Storage Shelves involves more than just picking a unit that fits nicely against your wall. You need to understand load ratings, shelf materials, and bay configurations to ensure your setup remains safe, secure, and durable for years to come.

At IronStor, we have been designing and manufacturing premium Metal Shelving and Industrial Shelving from our Stoke-on-Trent facility since 1984. Operating under strict ISO9001 and ISO14001 quality standards, we know what separates a second-rate import from a rugged, reliable storage system. In this guide, we break down everything you need to know about load ratings, sizes, and configurations so you can make an informed choice for your workspace.

1. Decoding Load Ratings: UDL vs Point Loads

The single most important specification when buying Heavy Duty Racking or shelving is the load capacity. If you miscalculate your weight requirements, sagging beams or unstable bays can put your inventory: and your team: at risk.

When browsing specification sheets, you will encounter a few key terms:

• Per-Shelf Load Capacity: The maximum weight a single shelf level can safely support. Heavy-duty units typically range from 150 kg up to 800 kg per shelf level.
• Bay Capacity: The total combined weight the entire shelving unit can hold. For example, a five-shelf unit rated at 300 kg per shelf might have a total bay capacity of 1,500 kg.
• UDL (Uniformly Distributed Load): This is crucial. A UDL rating means the quoted weight limit applies only when your items are spread evenly across the entire surface of the shelf.

Insider Tip: Always watch out for point loads. If you place a single, immensely heavy engine block or steel anvil right in the middle of a shelf, you create a high point load that can distort or overload the beams, even if the total weight is technically below the UDL threshold. Always distribute dense items across the shelf depth and width.

2. Choosing Your Shelf Decking: Chipboard vs Steel

The material supporting your goods plays a massive role in overall durability and day-to-day performance. When investing in Storage Racking, you generally have two main deck types to consider:

• High-Density Chipboard / MDF: Widely used in boltless heavy-duty systems. When paired with robust steel box beams, quality chipboard can support 300 kg to 800 kg UDL per shelf. It offers an affordable, solid surface that prevents smaller items from tipping over.
• Solid Steel or Wire Decking: Excellent for environments where hygiene, ventilation, or fire safety is paramount. Steel panels are impervious to moisture and oil, making them ideal for engineering workshops and commercial stockrooms.

At IronStor, we engineer our UK Manufactured Shelving to match your exact operational demands, ensuring your decking material stands up to daily wear and tear without warping.

3. Getting the Dimensions Right: Heights, Widths, and Depths

Space is always at a premium, whether you are outfitting a compact home garage or a sprawling distribution hub. Before ordering your Heavy Duty Shelving Units, take precise measurements of your available floor space and ceiling height.

Height Considerations

Most heavy-duty bays range from 1,500 mm to over 2,500 mm high. Tall units maximise your vertical storage capacity, but remember to account for overhead obstructions like lighting fixtures, fire sprinklers, and safe reach heights for your staff.

Width and Depth Sweet Spots

• Widths: Standard bays typically span between 900 mm and 1,200 mm. Keep in mind that longer shelves have a wider span, which can slightly reduce their maximum load capacity compared to shorter, more compact spans.
• Depths: For garages and standard stockrooms, a depth of 400 mm to 600 mm strikes the perfect balance: roomy enough for bulky storage boxes, yet shallow enough to reach items at the back without straining.

4. Selecting the Right Configuration for Your Space

Every workspace is unique, which is why modular flexibility is essential. Depending on your workflow, you can configure your Storage Shelving in several ways:

• Single Bay Runs: Standalone units perfect for tight corners or small stockrooms.
  Extended Runs: Modular starter and add-on bays that lock together to create a continuous wall of sturdy Industrial Shelving.
• Corner Units: Designed to wrap smoothly around 90-degree corners, ensuring zero wasted space in dead zones.

5. Why Choose UK-Manufactured Quality?

It is easy to be tempted by cheap, value-engineered imports flooding the market. However, imported thin-gauge metal often bends under pressure, lacks proper safety locking pins, and leaves you stranded when you need spare parts or expansion bays.

Since 1984, IronStor has manufactured everything to order right here in the UK. When you choose our UK Manufactured Shelving, you benefit from:

• Rigorous ISO9001 Quality Control: Every upright, beam, and shelf is engineered for maximum structural integrity.
• Sustainable Practices: Certified to ISO14001, minimising environmental impact at every stage of production.
• Direct Manufacturer Support: Need advice on load calculations or custom sizes? We are here to help you get it right the first time.

Take the Next Step Today

Investing in the right storage infrastructure transforms a chaotic workspace into an efficient, safe operation. Whether you need a rugged setup for your home garage or heavy-duty bays for a bustling commercial warehouse, we have you covered.

If you want advice, need help calculating your load requirements, or wish to learn more about our robust product range, contact our team today. Call us: 01782 770100, Email: info@ironstor.co.uk or fill in the form here and one of our team will be in touch.
