Pallet Racking Beam Capacity Explained

Getting your warehouse storage right starts with understanding your loads. When you are specifying Pallet Racking, Heavy Duty Racking, or general Warehouse Racking, beam capacity is the single most critical factor keeping your stock secure and your staff safe. Yet, reading beam load ratings and understanding technical terms like UDL, deflection limits, and safety margins can sometimes feel like deciphering a foreign language.

At IronStor, we design and manufacture high-quality storage solutions right here in our Stoke-on-Trent facility. Having built robust Industrial Storage Solutions since 1984 under strict ISO9001 and ISO14001 standards, we know how vital it is to get your weight calculations spot-on.

Whether you are upgrading your current setup or planning a brand-new facility, this straightforward guide breaks down everything you need to know about pallet racking beam capacity so you can make informed, safe decisions.

1. What Do "Beam Capacity" and "Load Rating" Actually Mean?

When browsing specifications for Storage Racking, you will notice numbers attached to beam pairs. Getting familiar with these terms prevents costly mistakes and structural failures:

• Capacity is Per Pair: Rated capacity describes how much weight two beams together (the front beam and back beam supporting a single pallet level) can safely hold. If a pair of beams is rated for 3,000 kg, that figure applies to the combined level, not to each individual beam.
• Uniformly Distributed Load (UDL): Load ratings are calculated assuming the weight is spread evenly across the length of the beams, rather than concentrated at a single point. If your pallets have uneven feet or concentrated point loads, you may need deck supports or mesh panels to distribute the weight.
• The Dead Weight: Capacity charts account for the product, the pallet itself, and any decking or accessories resting on the beams.

2. Understanding Deflection Limits (Why a Little Sag Is Normal)

One of the most common questions warehouse managers ask is: “Why are my beams bending slightly under load?”

It is completely natural for steel beams to experience a small amount of vertical sag when fully loaded. However, engineering codes strictly govern how much bend is permissible:

• The L/180 or L/200 Rule: Standards like the Rack Manufacturers Institute (RMI) and European EN standards limit vertical beam deflection to a fraction of the total span (typically length divided by 180 or 200). For a 2.7-metre (approx. 108-inch) beam, the allowable deflection under full load is usually less than 15 millimetres.
• Bending vs. Deflection: A beam’s rated capacity is determined by whichever limit is reached first: structural bending strength or the maximum allowable deflection limit.
• The Practical Check: Measure your beam height from the floor at each upright connection, then measure at the mid-point. If the difference is within the code limits, your racking is functioning correctly. If the sag is excessive or permanent after unloading, it is time to inspect and replace the component immediately.

3. Safety Factors: Design Engineering vs. Daily Operation

There is an important distinction between how engineers calculate beam ratings and how you should manage your daily Warehouse Safety:

Built-in Engineering Margins

Manufacturer ratings are not the absolute failure point of the steel. Design standards incorporate safety factors and account for operational forces, such as the dynamic impact of a forklift placing a pallet onto the shelf.

Operational Safety Margins for Your Business

Even though engineering codes include safety margins, you should never run your storage at 100% of its rated capacity in daily use.

• Add a 20% to 35% Buffer: Experts recommend choosing beam capacities that exceed your maximum calculated load by at least 25%. If your heaviest pallet level weighs 3,000 kg, select beams rated for 3,750 kg or higher.
• Respect Posted Plaques: Always ensure your Load Application and Rack Capacity (LARC) safety notices are visible on your runs, detailing maximum bay and beam limits.

4. Key Factors That Influence Beam Capacity

Not all beams are created equal. When selecting Heavy Duty Shelving or racking components, several physical characteristics dictate how much weight a beam can shoulder:

• Beam Length (Span): Longer beams experience greater leverage and bending forces. For instance, an 8-foot beam might support a significantly heavier load than a 12-foot beam of the exact same profile.
• Profile Height and Thickness: Deeper beam faces (e.g., 120mm vs 90mm box beams) and thicker steel gauges provide higher rigidity and load capacity.

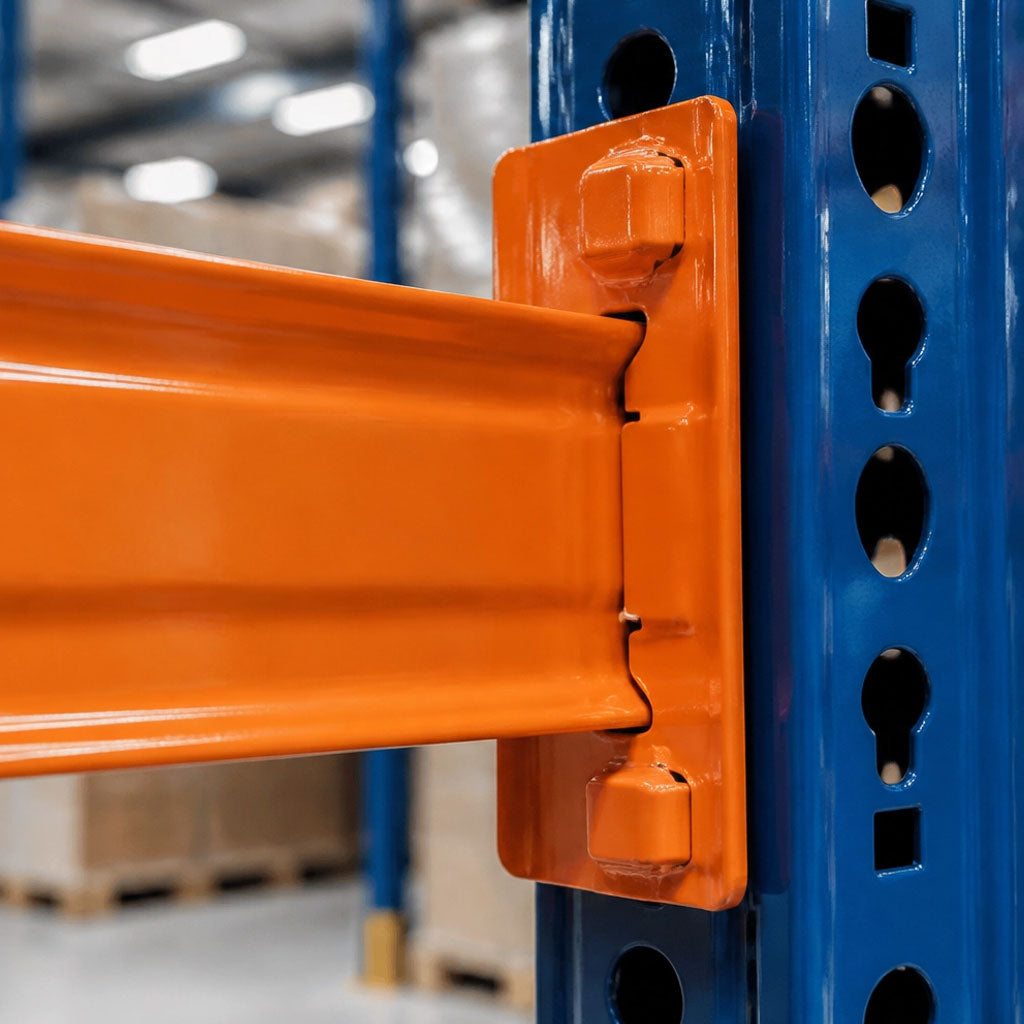

• Connector Design: The locking mechanism connecting the beam to the upright frame plays a vital role in structural rigidity and preventing accidental dislodgement.
• Upright and Bay Limits: Remember that high beam capacity is only half the equation. Your upright frames and overall bay capacity must also be able to support the cumulative weight of every level combined.

5. A Simple 5-Step Formula to Match Beams to Your Pallet Loads

To ensure your warehouse is both productive and fully compliant, follow this straightforward process when specifying your next racking layout:

• Step 1: Weigh your heaviest fully loaded pallet (product + pallet base).
• Step 2: Determine how many pallets will sit side-by-side on a single beam level (most standard bays accommodate 2 or 3 standard Euro or UK pallets).
• Step 3: Calculate your total level load (Heaviest Pallet Weight × Number of Pallets per Level).
• Step 4: Apply an operational safety factor by multiplying your total level load by 1.25.
• Step 5: Check manufacturer load tables and select beams whose rating meets or exceeds that final figure.

If you ever need guidance on custom dimensions or non-standard loads, our team at IronStor is always on hand to help.
