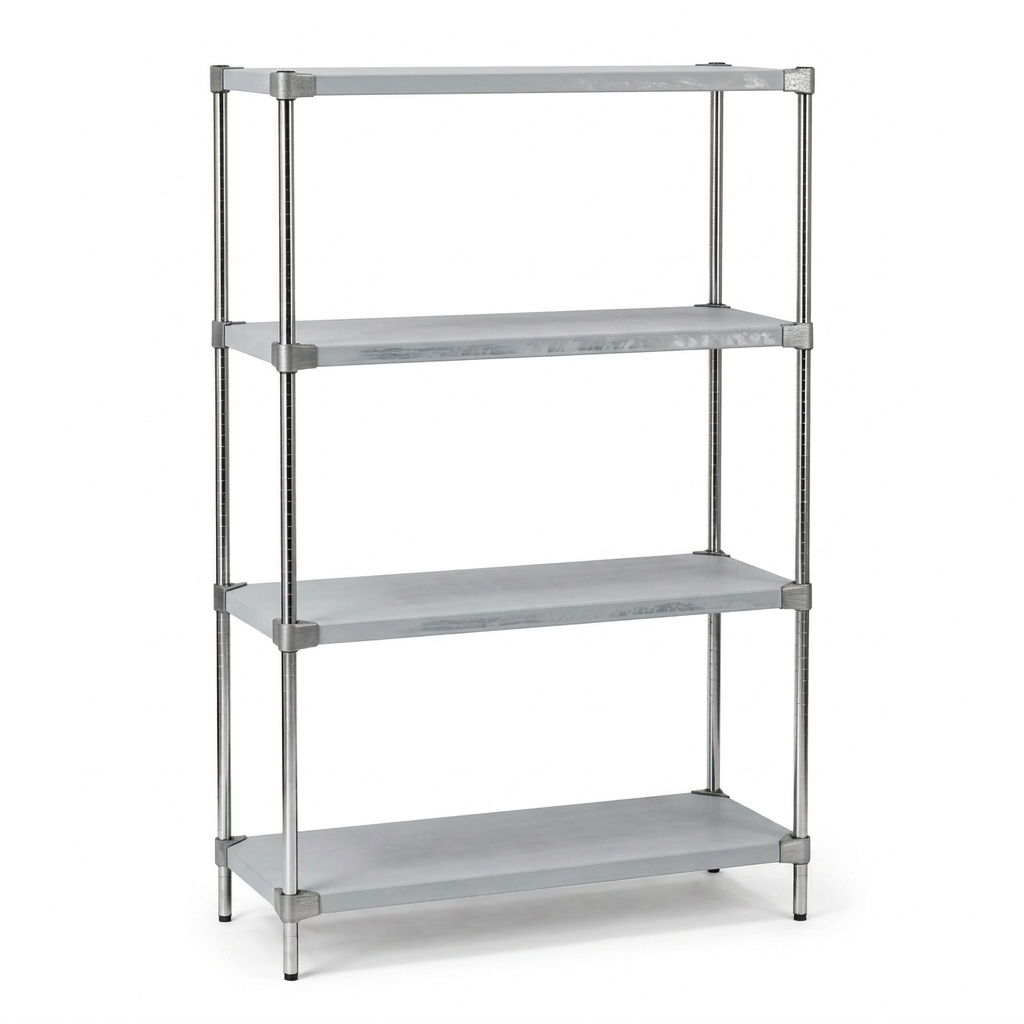

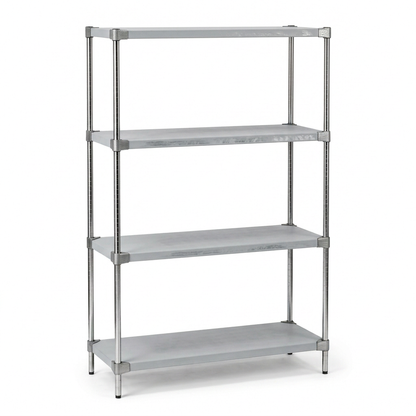

Eclipse Galvanised Steel Shelving Unit – 4 Solid Shelves, 1820mm High
Eclipse Galvanised Steel Shelving Unit – 4 Solid Shelves, 1820mm High
• Quick and easy to assemble - Bolt free and no specialist tools required
• Strong and robust - Up to 300kg shelf load capacity - Max bay loads. 1000kg.
Couldn't load pickup availability
6 Year Warranty on all IronStor Shelving | Found it Cheaper? We will beat any online price — Call to Price Match
- • Standard Delivery £14.95 (7 Working Days)
Strong, low-cost solid steel shelving for stockrooms, workshops and stores. Eclipse galvanised units hold up to 300kg per shelf, go together in minutes without bolts or tools..
The galvanised finish gives a clean, professional look for back-of-house storage or retail display. Solid shelves with a dished edge contain spills and stop items rolling off, and there's no mesh to trap dust. The anodised corner collars are conductive, so the units also suit ESD-sensitive electronics work.
Ideal for
- Stockrooms, warehouses and general stores
- Workshops and maintenance areas
- Wet/dry stores and back-of-house storage
- Electronics assembly and ESD-protected areas
- Archives and records storage
Galvanised Steel Shelving highlights
- Bolt-free assembly – no specialist tools needed
- 300kg per shelf (UDL) and 1000kg per bay
- 1.2mm solid galvanised steel shelves
- Dished shelf design – contains spills and keeps stock in place
- Fully adjustable – move shelves in 25mm steps
- ESD corner collars – anodised and conductive for static-sensitive work
- Wide size range – lengths up to 1220mm
- Expandable – add extra shelves at any time, plus a huge range of chrome accessories
Specification
| Height | 1820mm |
| Shelves | 4 solid shelves, dished edge |
| Depths | 460mm or 610mm |
| Lengths | 760mm, 915mm, 1070mm or 1220mm |
| Shelf thickness | 1.2mm |
| Shelf load (UDL) | 300kg |
| Bay load | 1000kg |
| Shelf adjustment | Every 25mm |
| Finish | Galvanised steel |
Shelf Loading:
| Shelf Length | Static Units | With 75mm Castor | With 100mm Castors | With 125mm Castors |
| Up to 1220mm | 300 kg per shelf | 210 kg per bay | 240 kg per bay | 300 kg per bay |
| Over 1220mm | 240 kg per shelf | 210 kg per bay | 240 kg per bay | 300 kg per bay |
Pitch Levels:
1625mm high unit (chrome posts only)
| No. Of Shelves | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Floor to Bottom Shelf | 87mm | 87mm | 87mm | 87mm | 87mm | 87mm | 87mm | 240mm | 87mm | 215mm |
| Between Shelves | 730mm | 470mm | 350mm | 270mm | 220mm | 3x195 4x170 |
4x170 4x145 |
120mm | 120mm | 95mm |
1820mm high unit (stainless steel and chrome posts)
| Floor to Bottom Shelf | 87mm | 67mm | 67mm | 87mm | 110mm | 67mm | 87mm | 190mm | 87mm | 87mm |
| Between Shelves | 730mm | 470mm | 350mm | 270mm | 220mm | 3x195 4x170 |
4x170 4x145 |
120mm | 120mm | 95mm |
2130mm high unit (chrome posts only)
| Floor to Bottom Shelf | 87mm | 87mm | 87mm | 87mm | 87mm | 87mm | 87mm | 67mm | 67mm | 67mm |
| Between Shelves | 970mm | 665mm | 460mm | 360mm | 5x290 1x310 |
5x230 2x260 |
210mm | 185mm | 160mm | 4x160 7x130 |
Need more shelves?

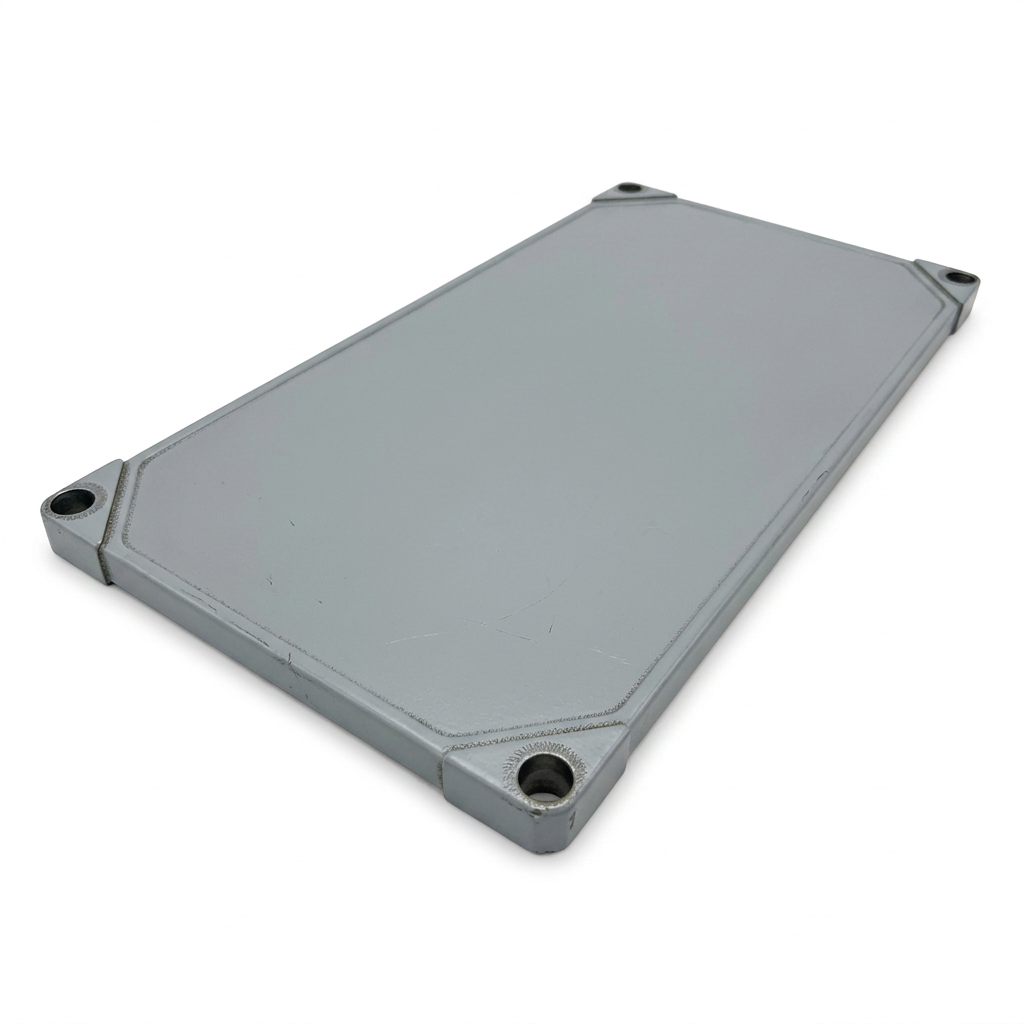

Add extra tiers with our Eclipse Galvanised Steel Spare Shelf. Working in a wet, cold or sterile environment? Upgrade to the Eclipse Stainless Steel Shelving Unit.
FAQs
Galvanised or stainless – which should I choose?
Galvanised steel is a tough, lower-cost choice for stockrooms, workshops and general storage. Choose stainless steel for food areas, cold rooms, sterile spaces and anywhere that's washed down often.
How long does assembly take?
The system is bolt-free, so no specialist tools are needed. Most units go together in minutes.
Can I add shelves later?
Yes. Spare shelves are available in every size, and shelf heights adjust in 25mm steps.
Is it suitable for electronics work?
Yes. The anodised corner collars are conductive, so the units suit ESD-sensitive areas.
How fast is delivery?
Standard delivery is £14.95 and takes around 7 working days. Found it cheaper elsewhere? Call us and we'll beat any online price.
